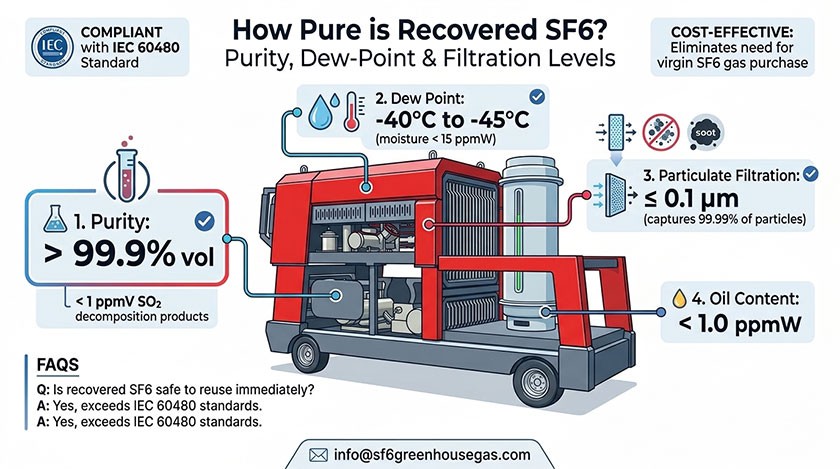

When utilizing a high-efficiency SF6 recovery and filling machine, you can expect the recovered sulfur hexafluoride gas to consistently achieve a purity of 99.9% or higher, a dry dew-point level of -40°C to -45°C (less than 15 ppmW moisture), and particulate filtration down to 0.1 µm. This exceptional purification performance comfortably exceeds the strict IEC 60480 international standards for recycled SF6 gas. By successfully reclaiming gas to these premium metrics, electrical utilities, test labs, and GIS OEMs can safely reuse their existing inventory, dramatically lower operational expenses, and maintain flawless environmental compliance.

1. Achieving High SF6 Gas Purity: Eliminating Harmful Decomposition Products

During high-voltage arcing, SF6 gas naturally degrades into highly toxic and corrosive byproducts like sulfur dioxide (SO2) and hydrofluoric acid (HF). When recovering gas from circuit breakers, an advanced SF6 recovery and filling machine must do more than just pump gas; it must actively purify it.

• Purity Levels: The integrated multi-stage purification system filters out contaminants to achieve a volume concentration of ≥ 99.9%. This is significantly cleaner than the minimum reuse threshold of ≥ 97% mandated by IEC 60480.

• Byproduct Adsorption: Corrosive acidic byproducts are stripped down to < 1 ppmV via highly reactive molecular sieve desiccant beds, protecting your gas-insulated switchgear (GIS) from internal corrosion.

If you need a detailed technical evaluation of your current gas quality or require a customized purification setup, feel free to email our engineering experts at [email protected] for professional technical support.

2. Managing SF6 Recovery Dew Point and Moisture Levels

Moisture is the primary catalyst for SF6 degradation. In the presence of water, arcing creates aggressive chemical reactions that compromise the dielectric strength of the gas and destroy internal switchgear insulation.

To combat this, modern SF6 gas recovery equipment relies on deep-vacuum dehydration:

• Target Dew Point: The system reliably lowers the dew point to -40°C to -45°C (measured at atmospheric pressure).

• Moisture Volumetric Content: This dew point translates to a dry moisture level of < 15 ppmW (or < 120 ppmV), safely staying below the strict moisture limits defined by major global GIS manufacturers.

3. High-Efficiency Particle and Oil Filtration

Solid decomposition products—such as metal fluorides and fine carbon powders—are generated during electrical faults. Additionally, trace oil vapors can migrate from worn equipment compressors.

A high-performance SF6 recovery and filling machine addresses these particulates through dual-stage filtration:

• 0.1-Micron Particulate Filter: Captures ultra-fine micro-particles down to ≤ 0.1 µm with an efficiency rating of 99.99%.

• Coalescing Oil-Mist Separator: Reduces oil content to < 1 ppmW, ensuring that the gas remains entirely clean and oil-free before it is compressed into liquid storage.

Technical Performance Standards & IEC Comparison

Solving Key Industry Pain Points: Compliance, Cost, and Efficiency

• Absolute Compliance: Using an SF6 recovery and filling machine with oil-free compressors guarantees that your maintenance operations align perfectly with local F-gas regulations, EPA mandates, and IEEE standards.

• Drastic Cost Reduction: Reclaiming your existing gas to 99.9% purity eliminates the need to purchase expensive virgin SF6 gas, providing a rapid return on investment (ROI) on your machinery.

• Maximizing Field Efficiency: High-capacity vacuum pumps (e.g., ≥ 40 m³/h) and rapid liquid storage systems minimize utility downtime, accelerating maintenance turnarounds on critical transmission lines.

Frequently Asked Questions (FAQs)

Q1: Is recovered SF6 gas safe to reuse immediately in high-voltage breakers?

Yes. Once processed by our multi-stage purification and desiccant system, the gas exceeds the purity, dew point, and particulate standards set by the IEC 60480 directive, making it immediately ready for reinjection into active GIS compartments.

Q2: Why is a completely oil-free compressor vital for recovery operations?

Standard lubricated compressors carry a high risk of leaking trace oil into the SF6 gas stream. When exposed to an electrical arc, oil carbonizes, creating a conductive path that can cause catastrophic failure within the circuit breaker.

Q3: How do I choose the right recovery machine size for my substation?

The choice depends primarily on the gas volume of your largest GIS enclosure and your target processing window. Larger compartments require higher vacuum speeds and larger onboard storage capacities to avoid bottlenecking maintenance teams.
