Purity of sulfur hexafluoride
Measurement principle: Thermal conductivity
Measurement range: (0 - 100)%
Maximum allowable error: ±0.5
Response time: ≤60s
In the field of SF6 gas detection, precise detection and environment-friendly recycling have always been the goals pursued by the industry. To this end, we have specially launched the returnable SF6 gas analyzer, an innovative product that integrates high-precision detection, environment-friendly recycling, and refilling functions, bringing a revolutionary change to your SF6 gas detection work.
Analysis of the Core Highlights of the Product
One-key Automatic Measurement, Precise Data Locking
The returnable SF6 gas analyzer is equipped with a one-key automatic measurement function. The system can quickly and accurately lock the measurement data, ensuring that every detection is accurate and error-free, greatly improving work efficiency.
Dual Functions of Recycling and Refilling, Achieving Zero Emission of SF6 Gas
The unique recycling and refilling functions of this SF6 gas analyzer enable the SF6 gas after detection to be recycled to an external temporary storage container or directly refilled into the sampling gas chamber, truly achieving zero emission of SF6 gas and contributing to environmental protection.
Expert Diagnosis System, Data Complying with Industry Standards
The equipped expert diagnosis system can determine whether the measurement data meets the requirements according to industry standards, providing you with professional data interpretation and adjustment suggestions, making your detection work more professional and reliable.
Modular Design, Convenient and Efficient Maintenance and Replacement
The returnable SF6 gas analyzer adopts a modular design, making maintenance or replacement more convenient and efficient, reducing maintenance costs, extending the service life of the equipment, and safeguarding your investment.
Large-capacity Storage, Easy Data Export via USB
This returnable SF6 gas analyzer has a large-capacity storage function (up to 10,000 entries). The stored data can be easily exported via USB, facilitating your data management and analysis and improving work efficiency.

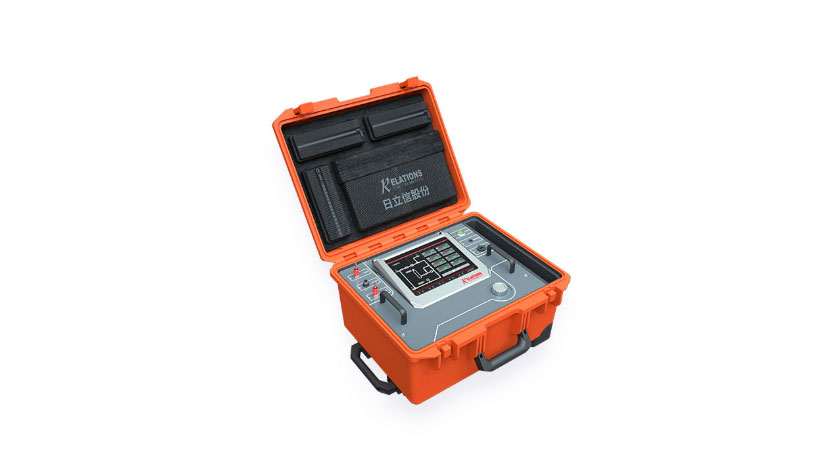

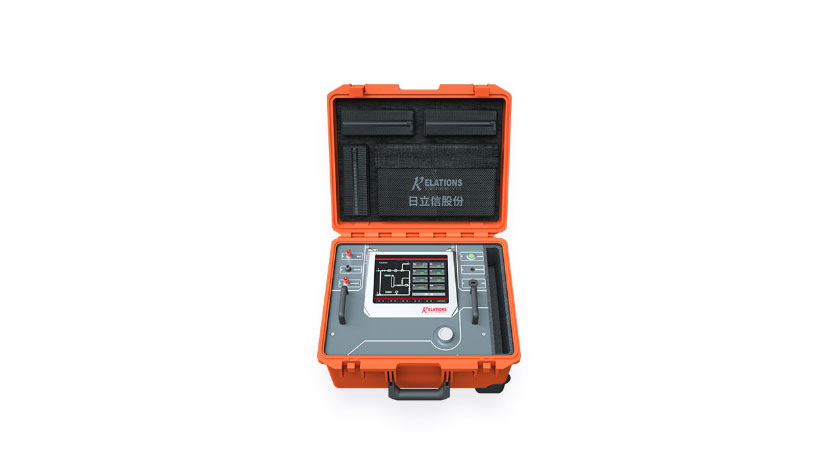

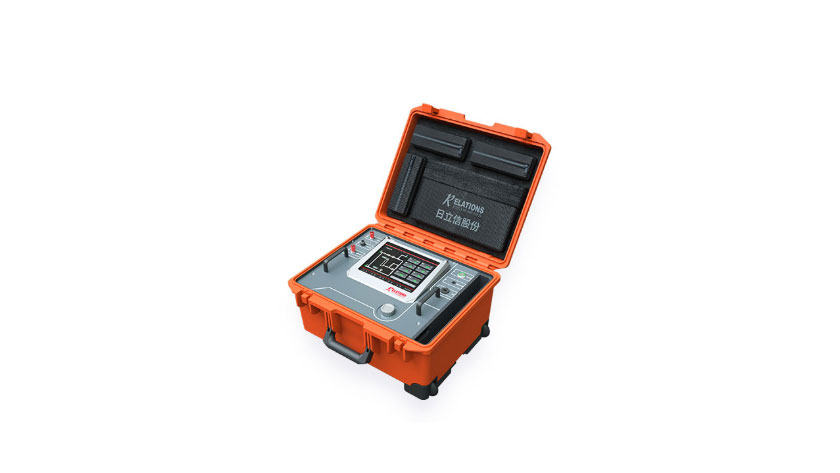

Trolley Case Design, Easy Mobility
Adopting a trolley case design with moving wheels at the bottom, the mobility of the returnable SF6 gas analyzer becomes effortless. No matter where you are, you can quickly start the detection work.
Application Scenarios and Significance
The returnable SF6 gas analyzer is widely used in the detection of SF6 gas in industries such as power, petrochemical, railway, and electrical equipment manufacturing. Its characteristics of precise detection and environment-friendly recycling not only provide enterprises with accurate and reliable detection data but also greatly reduce the impact on the environment, helping enterprises achieve green and sustainable development and leading the new trend of the industry.
Choosing the returnable SF6 gas analyzer means choosing the perfect combination of precise detection and environment-friendly recycling. Let's work together to use the power of technology to ensure the accuracy and environmental protection of SF6 gas detection, contribute to the green development of enterprises, and jointly lead the new trend of the industry!
Product Parameters
| Parameter Name | Parameter Value |
|---|---|
| Input Pressure Range | (0.4~2) MPa |
| Recharge Pressure | ≤0.8MPa (directly recharge to pressure switch) |
| Recovery Pressure | ≤0.8MPa (recover to external cylinder, recovery bag (optional)) |
| Vent Pressure | Atmospheric pressure (recovery bag optional) |
| Flow Rate | 100~300mL/min, default 150mL/min (configurable) |
| Sulfur Hexafluoride Purity - Measurement Principle | Thermal conductivity |
| Sulfur Hexafluoride Purity - Measurement Range | (0~100)% |
| Sulfur Hexafluoride Purity - Maximum Allowable Error | ±0.5 |
| Sulfur Hexafluoride Purity - Response Time | ≤60s |
| Humidity (optional) - Measurement Principle (Laser) | Laser |
| Humidity (optional) - Measurement Range (Laser) | (-60~+20)℃ |
| Humidity (optional) - Maximum Allowable Error (Laser) | (-50~+20)℃: ±1℃; (-60~-50)℃: ±2℃ |
| Humidity (optional) - Response Time (Laser) | ≤30s |
| Humidity (optional) - Measurement Principle (Resistance-Capacitance) | Resistance-Capacitance |
| Humidity (optional) - Measurement Range (Resistance-Capacitance) | (-60~+20)℃ |
| Humidity (optional) - Maximum Allowable Error (Resistance-Capacitance) | ±2℃ |
| Humidity (optional) - Response Time (Resistance-Capacitance) | ≤3min |
| Sulfur Dioxide (SO₂) - Measurement Principle | Electrochemical |
| Sulfur Dioxide (SO₂) - Measurement Range | (0~100) μL/L |
| Sulfur Dioxide (SO₂) - Maximum Allowable Error | (0~10) μL/L: ±0.5μL/L; (10~100) μL/L: ±5% |
| Sulfur Dioxide (SO₂) - Response Time | ≤60s |
| Hydrogen Sulfide (H₂S) - Measurement Principle | Electrochemical |
| Hydrogen Sulfide (H₂S) - Measurement Range | (0~100) μL/L |
| Hydrogen Sulfide (H₂S) - Maximum Allowable Error | (0~10) μL/L: ±0.5μL/L; (10~100) μL/L: ±5% |
| Hydrogen Sulfide (H₂S) - Response Time | ≤60s |
| Carbon Monoxide (CO) - Measurement Principle | Electrochemical |
| Carbon Monoxide (CO) - Measurement Range | (0~500) μL/L |
| Carbon Monoxide (CO) - Maximum Allowable Error | (0~50) μL/L: ±2μL/L; (50~500) μL/L: ±5% |
| Carbon Monoxide (CO) - Response Time | ≤60s |
