Measurement range: (90 - 100)% (mol/mol)
Accuracy: ±0.5% (mol/mol)
Resolution: 0.01%
Response time: < 20s

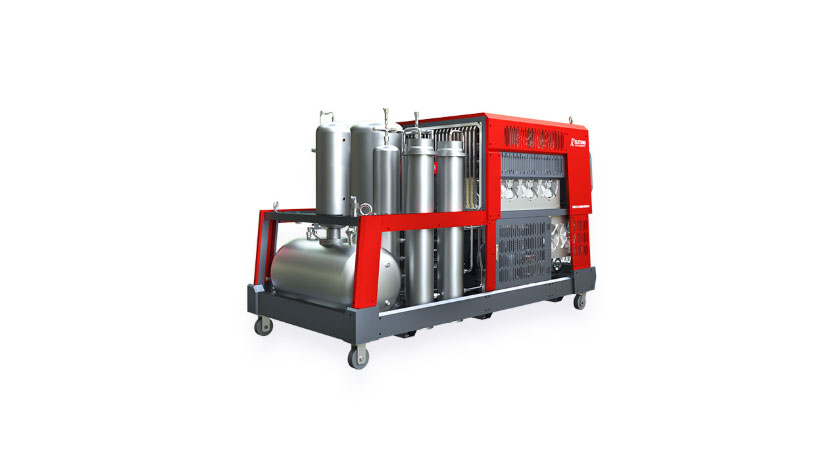

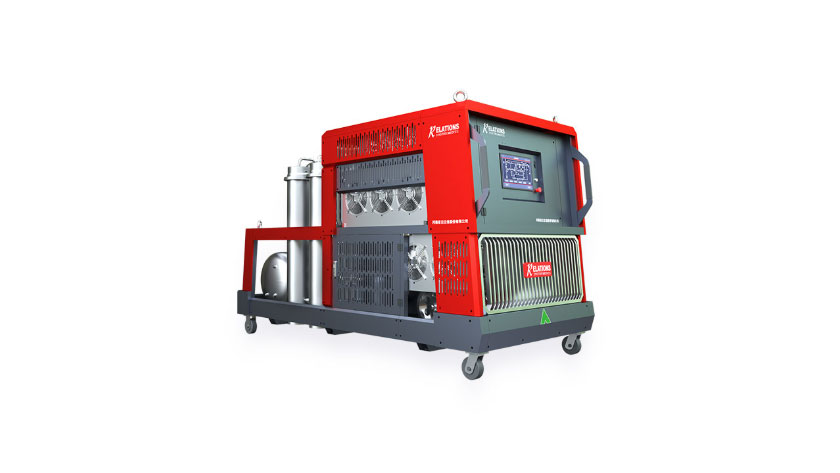

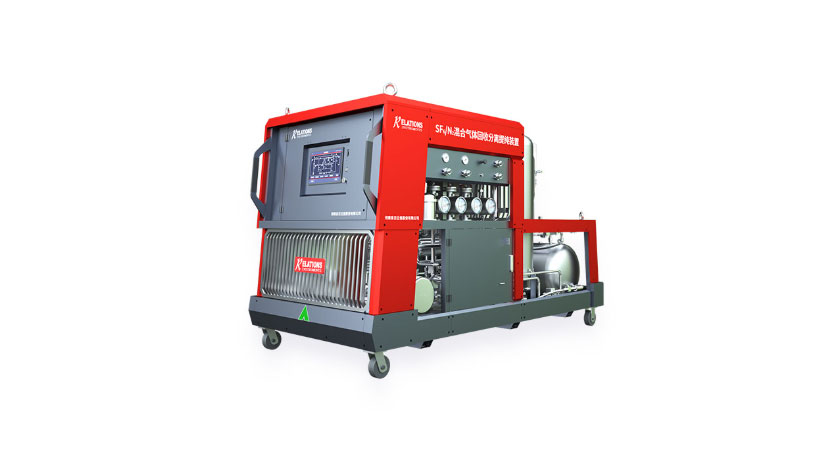

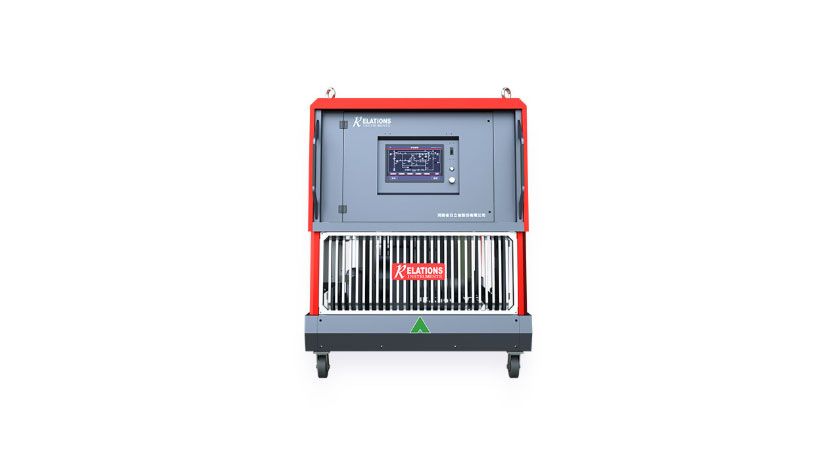

In the field of power equipment maintenance, the rapid recovery and high - efficiency separation of mixed insulating gases are of crucial importance. It is directly related to the safe and efficient operation of the equipment. Today, we would like to introduce a device specifically designed to meet this need - the RF - 151M mixed insulating gas recovery and separation equipment. This device integrates multiple powerful functions such as rapid recovery, high - efficiency separation, and pure gas recovery, and is a well - deserved assistant in power equipment maintenance work.
Core Highlights of the Product
Gas Pretreatment, Ensuring Purity
The RF - 151M mixed insulating gas recovery and separation equipment has an excellent gas pretreatment function. It can efficiently filter and adsorb micro - water, toxic and harmful decomposition products, and various impurities in the mixed gas. This function ensures the purity of the gas after recovery and separation, laying a solid foundation for the stable operation of power equipment. In the scenario of power equipment maintenance, pure gas is the key to the normal operation of the equipment, and this feature of the device perfectly meets this requirement.
Rapid Recovery, High - efficiency Separation
The mixed insulating gas recovery and separation equipment adopts advanced recovery and separation technologies. For SF6/N₂ mixed gases, it can achieve rapid recovery and high - efficiency separation. After separation and purification, the volume content of SF6 can reach over 99%, and the SF6 content in N₂ is less than 100 ppm. This high - efficiency separation ability greatly shortens the recovery time and significantly improves work efficiency. In the on - site operation of power equipment maintenance, time is efficiency, and the rapid recovery and high - efficiency separation functions of this device undoubtedly save a lot of time for maintenance work.
Compression and Storage, Convenient and Practical
The separated SF6 gas is compressed and stored in an external container. This design not only saves storage space but also improves the gas utilization rate and reduces maintenance costs. In the actual power equipment maintenance process, the convenient storage method can better meet the needs of on - site operations. This feature of the device fully considers the practical application scenario.
Pure SF6 Recovery, Multi - scenario Operation
The RF - 151M mixed insulating gas recovery and separation equipment also has the function of pure SF6 gas recovery, truly achieving multi - scenario operation with one device. Whether it is a mixed gas or pure SF6 gas, it can handle them easily, meeting the diverse needs of different power equipment maintenance. In the field of power equipment maintenance, different equipment and different scenarios have different gas treatment requirements. The multi - scenario operation ability of this device makes it more widely applicable.
Modular Design, Flexible Integration
The device adopts a modular design concept, which is convenient for flexible integration according to different on - site operation requirements. Whether it is the on - site recovery and separation operation of medium - low voltage switches (10 - 40.5) kV gas - insulated switchgear, high - voltage (72.5 - 220) kV porcelain post circuit breakers, 500 kV porcelain post circuit breakers, or 110 kV gas - insulated switchgear (GIS), it can handle them with ease. This flexible integration ability enables the device to better adapt to various complex on - site operation environments.
Application Scenarios and Value
The RF - 151M mixed insulating gas recovery and separation equipment has a wide range of applications in the field of power equipment maintenance. It is suitable for the on - site recovery and separation operations of medium - low voltage switches (10 - 40.5) kV gas - insulated switchgear, high - voltage (72.5 - 220) kV porcelain post circuit breakers, 500 kV porcelain post circuit breakers, and 110 kV gas - insulated switchgear (GIS). Its functions of rapid recovery, high - efficiency separation, and pure gas recovery can greatly improve the efficiency and safety of power equipment maintenance, reduce maintenance costs, and contribute significantly to the stable development of the power industry. In power equipment maintenance work, using this device can effectively reduce manual operations, reduce the risk of equipment failures caused by improper gas handling, and improve the overall maintenance quality.
Choosing the RF - 151M mixed insulating gas recovery and separation equipment means choosing the perfect combination of rapid recovery, high - efficiency separation, and pure gas recovery. It will become a powerful partner in power equipment maintenance work, helping the power industry move towards a more efficient and safe development path. Let's work together to create a better future for the power industry and use the power of technology to safeguard the stable operation of power equipment!
Product Parameters
Mixed Gas Separation Performance Parameters
| Parameter Name | Parameter Value |
|---|---|
| Mixed gas separation speed (mixing ratio 30% SF₆) | Three options: 14Nm³/h, 30Nm³/h, 50Nm³/h |
| Separated SF₆ concentration | ≥99% (mixing ratio 30% SF₆) |
| SF₆ content in N₂ | ≤0.01% |
| Filtration accuracy | 0.01μm |
Parameters of Built-in SF₆ Content Measuring Instrument
| Parameter Name | Parameter Value |
|---|---|
| Measurement range | (90~100)% (mol/mol) |
| Accuracy | ±0.5% (mol/mol) |
| Resolution | 0.01% |
| Response time | ＜20s |
Overall Machine Parameters
| Parameter Name | Parameter Value |
|---|---|
| Controller and display screen | Siemens S7-200, 15-inch integrated touch screen |
| Vacuum pump | 16m³, polar vacuum degree 10Pa |
| Power | 25kW max |
| Gas source pressure | (0.1~0.6) MPa |
