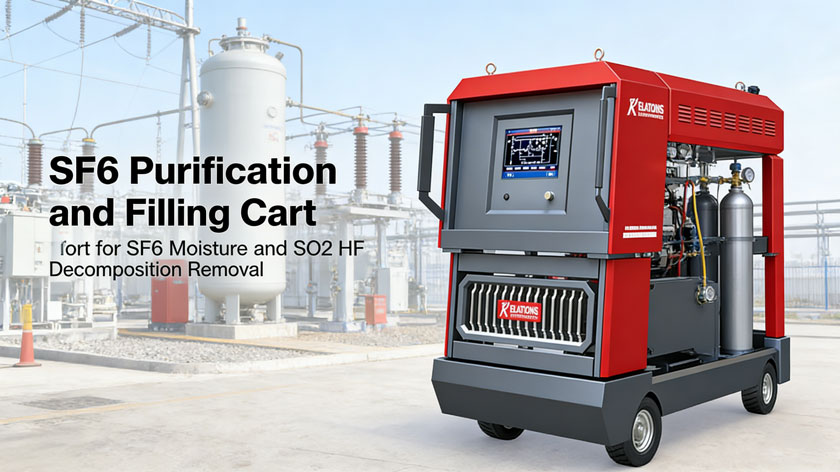

In the high-stakes world of electrical power transmission, the integrity of Gas-Insulated Switchgear (GIS) and Ring Main Units (RMU) is non-negotiable. Sulfur Hexafluoride (SF6) gas is the industry standard for insulation, but its performance is highly sensitive to contamination. The introduction of an SF6 purification and filling cart for SF6 moisture and SO2 HF decomposition removal represents a critical advancement in substation maintenance technology.

By moving beyond simple gas refilling to a comprehensive "online" purification strategy, utilities can mitigate the risks of internal arcing, reduce equipment downtime, and meet increasingly stringent environmental ESG targets.

1. The Chemical Challenge: Understanding SF6 Contamination

SF6 gas is chemically stable under normal conditions. However, when subjected to high-energy electrical arcs or partial discharges, the molecules break down. In the presence of even trace amounts of moisture, these fragments react to form toxic and highly corrosive byproducts.

The "Acidic Cycle" of Degradation

When moisture (H2O) enters a gas chamber, it reacts with SF6 decomposition fragments to create:

• Sulfur Dioxide (SO2): A primary indicator of electrical stress.

• Hydrogen Fluoride (HF): A highly corrosive acid that attacks the internal porcelain and metallic surfaces of the switchgear.

Left untreated, these contaminants create a feedback loop of degradation, lowering the dielectric strength of the gas and leading to catastrophic insulation failure. Utilizing an SF6 purification and filling cart for SF6 moisture and SO2 HF decomposition removal breaks this cycle by stripping these impurities from the gas during routine maintenance or online circulation.

2. Core Advantages of Integrated Purification Technology

Modern substation gas service requires a tool that is both a "vacuum pump" and a "chemical refinery." Our SF6 purification and filling cart is engineered to provide a 360-degree solution for gas management.

A. High-Efficiency Deep Purification

Unlike standard filling devices, this cart features a multi-stage molecular sieve and specialized adsorption bed. It is specifically designed to target:

• Micro-water (Moisture): Reducing ppm levels to meet IEC 60480 standards.

• Acidic Byproducts: Neutralizing SO2 and HF to prevent internal hardware corrosion.

• Particulates: Filtering out metallic dust and decomposition powders down to 1 micrometer or less.

B. "Online" Processing Capability

One of the most persuasive advantages of this system is its ability to perform online treatment. By connecting to an energized or de-energized gas chamber, the cart can continuously circulate and "wash" the gas, removing impurities without requiring a total gas replacement. This "continuous breathing" method significantly reduces the cost of purchasing new SF6 gas.

C. Precision Pressure and Vacuum Management

The cart is equipped with high-performance vacuum pumps (typically 17 cubic meters per hour or higher) and precision compressors. This ensures that the GIS chamber can be evacuated to a limit vacuum of 10 Pascals or less, preventing air ingress before the purified gas is re-introduced.

3. Technical Parameters and Performance Benchmarks

For technical procurement, the value of an SF6 purification and filling cart for SF6 moisture and SO2 HF decomposition removal is found in its specifications.

4. Usage Scenario Analysis: When to Deploy

Predictive maintenance is the hallmark of a modern utility. This purification cart is designed for several critical lifecycle stages of high-voltage equipment.

I. Post-Fault Remediation

Following a circuit breaker trip, the gas is often laden with SO2 and HF. Before the equipment is put back into service, the gas must be purified. The cart allows technicians to remove these toxins on-site, restoring the gas to "as-new" condition.

II. Routine Annual Maintenance

During annual audits, if moisture levels are found to exceed the threshold (e.g., greater than 300ppm), the cart can be deployed for a 24-hour "polishing" cycle. This prevents the need for a costly full-gas recovery and replacement.

III. Commissioning of New GIS Units

New equipment often contains residual moisture on internal surfaces. Using the cart to perform a "vacuum-dry and fill" sequence ensures that the initial gas charge remains pure for the first decade of service.

5. Economic ROI and Environmental Responsibility

Reducing Total Cost of Ownership (TCO)

SF6 gas is an expensive commodity. By regenerating existing gas inventory through an SF6 purification and filling cart for SF6 moisture and SO2 HF decomposition removal, utilities avoid the procurement costs of virgin gas. Furthermore, by preventing corrosion, the cart adds 10 to 15 years to the useful life of the switchgear itself.

ESG and Carbon Footprint

SF6 has a Global Warming Potential (GWP) 23,500 times that of CO2. Professional gas service equipment with a leakage rate of less than 0.5% ensures that zero gas is vented during maintenance. This aligns with corporate sustainability goals and helps avoid potential carbon taxes or regulatory fines.

6. Conclusion: The Professional Choice for Grid Integrity

As power grids become more complex and the cost of outages increases, the tools used for gas service must be equally sophisticated. An SF6 purification and filling cart for SF6 moisture and SO2 HF decomposition removal is no longer a luxury—it is an essential component of a reliable high-voltage infrastructure.

By integrating deep chemical filtration, high-capacity vacuum performance, and intelligent PLC controls, this equipment ensures that your GIS remains a safe, efficient, and long-lasting asset.

People Also Ask: SF6 Gas Purification & Maintenance

1. Why is it necessary to remove moisture and SO2/HF from SF6 gas?

Moisture ingress and decomposition products like Sulfur Dioxide (SO2) and Hydrogen Fluoride (HF) are the primary causes of insulation failure in high-voltage equipment. Moisture reacts with SF6 fragments during electrical arcing to form acidic byproducts. These acids corrode internal metallic contacts and degrade solid insulators, which can lead to catastrophic flashovers and unplanned outages.

2. Can SF6 gas be purified while the switchgear is online?

Yes. Modern SF6 purification and filling carts are designed for "online" circulation. This allows maintenance teams to connect the equipment to an energized or de-energized gas chamber to continuously filter out moisture and toxic decomposition products. This "continuous breathing" method restores gas quality to IEC 60480 standards without requiring a complete power outage or gas replacement.

3. What are the signs that SF6 gas requires purification?

The most common indicators that your gas needs processing include:

• High Humidity: Moisture levels exceeding 300ppm (or the manufacturer’s specific dew point threshold).

• Decomposition Detection: Presence of SO2 or HF during routine gas analysis, which signals internal arcing or overheating.

• Pressure Fluctuations: Changes in pressure that may indicate air or moisture ingress through aging seals.

4. How does an SF6 purification cart reduce maintenance costs?

An SF6 purification and filling cart provides a high Return on Investment (ROI) by:

• Regenerating Gas: It allows you to reuse existing gas instead of purchasing expensive virgin SF6.

• Extending Asset Life: By neutralizing corrosive HF acid, it can add 10 to 15 years to the lifespan of GIS and RMU modules.

• Avoiding Fines: High-precision handling (leakage rates less than 0.5%) ensures compliance with environmental regulations, avoiding carbon taxes and emission penalties.

5. What technical specifications are critical for an SF6 service cart?

For effective maintenance, look for a cart that provides:

• Filtration Precision: 1 micrometer or less to capture solid decomposition powders.

• Vacuum Performance: A limit vacuum of 10 Pascals or less to ensure all air and moisture are removed before refilling.

• PLC Automation: Intelligent controls to manage the cycle safely and provide data logging for ESG reporting and compliance audits.
