Sulfur hexafluoride (SF₆) remains indispensable in high-voltage electrical systems due to its unmatched dielectric strength and arc-quenching properties. However, its extreme global warming potential—23,500 times that of CO₂—has placed intense regulatory and environmental pressure on utilities, industrial operators, and service providers to minimize emissions and maximize gas reuse. The solution lies not in abandoning SF₆, but in reclaiming it to high-purity standards through advanced technology.

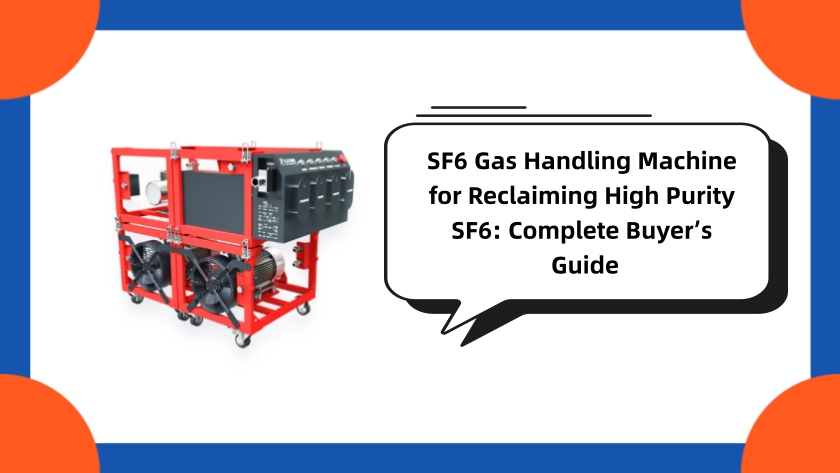

At the core of this strategy is the SF6 gas handling machine for reclaiming high purity SF6—a specialized, integrated system engineered to recover, purify, and validate SF₆ so it meets or exceeds international reuse specifications. This article explores why such machines are essential, how they work, and what criteria define a truly effective unit for modern power systems.

Why Reclaiming High-Purity SF₆ Matters

During normal operation or after internal arcing events, SF6 degrades into hazardous byproducts such as sulfur dioxide (SO₂), hydrogen fluoride (HF), metal fluorides, moisture, and oil vapors. Using contaminated gas risks:

• Insulation failure due to reduced dielectric strength

• Corrosion of internal switchgear components

• Non-compliance with IEC 60480, the global standard for reclaimed SF₆

Rather than venting used gas (illegal in most jurisdictions) or shipping it off-site for reprocessing (costly and slow), an SF6 gas handling machine for reclaiming high purity SF6 enables on-site regeneration—turning waste into a valuable, compliant resource.

Core Capabilities of a High-Purity Reclamation System

Not all SF₆ handling units are created equal. True reclamation requires more than basic recovery and storage. A professional-grade SF6 gas handling machine for reclaiming high purity SF6 must deliver:

1. Multi-Stage Purification

• Particulate filtration: Removes solid arc byproducts (e.g., tungsten or copper fluorides)

• Activated alumina & molecular sieves: Adsorb moisture to <10 ppmv (critical for preventing HF formation)

• Chemical scrubbers: Neutralize acidic gases like SO₂ and HF

• Oil coalescers: Eliminate compressor or vacuum pump oil carryover

Only this layered approach ensures gas meets IEC 60480 limits:

• Moisture: ≤40 ppmv

• Air (N₂ + O₂): ≤0.2%

• CF₄: ≤0.05%

• Acidity (as HF): ≤0.3 ppmw

2. Integrated Analytical Verification

Top-tier units include onboard gas analyzers (e.g., electrochemical sensors or NDIR spectrometers) that measure:

• Purity (% SF₆)

• Moisture (ppmv)

• SO₂ concentration (ppmv)

Results are displayed in real time and logged digitally—providing auditable proof of compliance before refilling equipment.

3. Closed-Loop, Zero-Emission Operation

All connections use DILO®-compatible, self-sealing couplings to prevent fugitive emissions. Automatic shut-off valves engage if pressure anomalies are detected, ensuring no gas escapes during transfer.

4. High Recovery Efficiency

Advanced compressors and dual-stage vacuum pumps recover >99% of gas from GIS compartments, achieving final vacuum levels below 1 mbar—as required by IEC 62271-4.

Operational and Economic Advantages

Deploying an SF6 gas handling machine for reclaiming high purity SF6 delivers measurable ROI:

• Eliminates virgin SF₆ purchases: Reclaimed gas costs ~5–10/kg vs. 50–100/kg for new

• Avoids third-party reprocessing fees: Off-site purification can cost 150–300 per cylinder

• Reduces outage time: On-site reclamation means same-day refill—no waiting for lab results

• Supports ESG reporting: Each kg of reclaimed SF₆ prevents 23.5 tons of CO₂-equivalent emissions

A European TSO reported saving €220,000 annually and cutting SF₆ procurement by 90% after deploying fleet-wide reclamation units.

Key Selection Criteria for Buyers

When evaluating an SF6 gas handling machine for reclaiming high purity SF6, verify these features:

✅ Certified purification performance – Request test reports showing post-reclamation gas meets IEC 60480
✅ Onboard analytics with calibration traceability – Essential for audit readiness
✅ Oil-free compressor technology – Prevents cross-contamination and reduces maintenance
✅ Digital data logging with GPS/timestamp – Required for EPA GHG reporting and EU F-Gas compliance
✅ Compact, field-ready design – Weight <85 kg, universal voltage input, ruggedized for substation use

Leading manufacturers offer models specifically engineered for high-purity reclamation.

Regulatory Alignment Is Non-Negotiable

Global regulations increasingly mandate closed-loop handling:

• EU F-Gas Regulation: Requires recovery during servicing; bans venting; demands certified personnel

• U.S. EPA Subpart DD: Tracks SF₆ inventory and emissions; encourages reuse of reclaimed gas

• ISO 14064 & CDP Reporting: Utilities must quantify avoided emissions from reclamation

An SF6 gas handling machine for reclaiming high purity SF6 isn’t just a tool—it’s a compliance engine that future-proofs operations against tightening climate policies.

Real-World Impact: From Waste to Warranty-Level Gas

Consider a 400 kV circuit breaker requiring 80 kg of SF₆. After a fault, the gas contains 120 ppmv moisture and 8 ppmv SO₂—well above IEC 60480 limits. A standard recovery cart would store this contaminated gas for disposal. But a high-purity reclamation unit processes it in under 90 minutes, yielding gas with:

• 8 ppmv moisture

• <0.5 ppmv SO₂

• 99.98% SF₆ purity

This reclaimed gas is then safely refilled into the same breaker—restoring performance without purchasing new gas or risking equipment damage.

Conclusion: Reclamation Is the Responsible Standard

As the energy sector transitions toward sustainability, responsible SF6 management is no longer optional. The SF6 gas handling machine for reclaiming high purity SF6 represents the convergence of engineering excellence, environmental stewardship, and economic efficiency. By enabling on-site regeneration to OEM-grade specifications, it empowers operators to maintain grid reliability while honoring their climate commitments.

In an era where every kilogram of SF₆ counts, reclamation isn’t just smart—it’s essential.
