As the world intensifies its efforts to combat climate change, industries are under mounting pressure to manage high-impact greenhouse gases responsibly. Among these, sulfur hexafluoride (SF6) stands out as one of the most potent—boasting a global warming potential (GWP) 23,500 times greater than CO₂ over a 100-year horizon and an atmospheric lifetime of up to 3,200 years. Despite its environmental risks, SF6 remains indispensable in the electrical power sector due to its unmatched insulating and arc-quenching properties, particularly in high-voltage switchgear and gas-insulated substations (GIS).

To balance operational necessity with environmental responsibility, utilities and industrial operators are increasingly turning to advanced technology: the SF6 recycling and purify device. This specialized equipment enables the safe recovery, purification, and reuse of SF6 gas—dramatically reducing emissions, ensuring regulatory compliance, and supporting the transition toward sustainable energy infrastructure.

Why SF6 Management Can’t Be Ignored

SF6 is primarily used in electrical transmission and distribution systems, where it prevents short circuits and safely interrupts high-current arcs. However, during installation, maintenance, or decommissioning of equipment, SF6 can be released into the atmosphere—often unintentionally through leaks or improper handling.

Historically, venting SF6 was common practice. Today, such actions are strictly prohibited under international agreements like the Kyoto Protocol and regional regulations including the EU F-Gas Regulation (EU) No 517/2014, which mandates:

• Recovery of SF6 by certified personnel

• Prohibition of intentional releases

• Detailed recordkeeping of gas quantities

• Use of recycled or reclaimed gas whenever possible

This regulatory landscape makes the deployment of an SF6 recycling and purify device not just advisable—but essential for legal and environmental compliance.

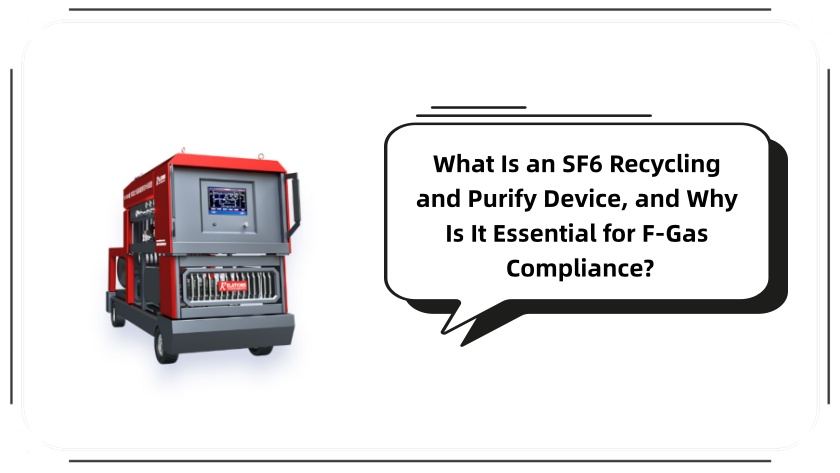

How an SF6 Recycling and Purify Device Works

An SF6 recycling and purify device is a compact, often mobile unit engineered to extract used SF6 from electrical equipment, remove contaminants, and restore the gas to a quality suitable for reuse—typically meeting the IEC 60480 international standard for reclaimed SF6.

The core process involves several integrated stages:

1. Recovery: A high-vacuum pump draws SF6 from GIS or circuit breakers into an internal storage tank, minimizing residual gas left in the system.

2. Filtration & Purification: The gas passes through multiple filtration stages:

• Particulate filters remove solid decomposition byproducts

• Molecular sieves and alumina absorb moisture (critical, as water reacts with SF6 to form corrosive acids)

• Activated carbon captures oil vapors and organic contaminants

• Chemical scrubbers neutralize toxic byproducts like SO₂, HF, and CF₄ formed during arcing

3. Analysis: Built-in sensors or optional gas chromatographs verify purity, moisture content (<10 ppm), and decomposition levels.

4. Storage & Reuse: Clean, dry SF6 is stored under pressure for immediate refilling or future use.

Many modern units also feature automatic/manual data logging, capturing timestamps, operator IDs, gas mass, and purity metrics—crucial for audit trails and F-Gas reporting.

Environmental and Economic Benefits

Deploying an SF6 recycling and purify device delivers significant dual advantages:

1. Drastic Emission Reductions

By reclaiming and reusing over 95% of extracted SF6, organizations can slash their Scope 1 greenhouse gas emissions. For context, recovering just 1 kg of SF6 prevents the equivalent of 23.5 tonnes of CO₂ from entering the atmosphere.

2. Substantial Cost Savings

Virgin SF6 is expensive—and its price continues to rise due to production quotas, carbon taxes, and supply constraints. Recycling reduces the need for new gas purchases by up to 70%, offering rapid return on investment.

3. Extended Equipment Lifespan

Contaminated SF6 can degrade insulation performance and corrode internal components. Using purified gas ensures optimal switchgear operation, reducing failure risk and maintenance frequency.

4. Regulatory Assurance

With automated compliance documentation, utilities avoid fines, operational delays, or reputational damage linked to non-compliance.

Applications Across Key Sectors

The SF6 recycling and purify device is vital across industries reliant on high-voltage electrical systems:

• Electric Utilities: Managing GIS networks in urban substations where space constraints favor SF6-based designs.

• Renewable Energy: Servicing offshore wind farms and solar parks that connect to the grid via SF6-insulated switchgear.

• Rail & Transportation: Maintaining traction power substations for electrified railways.

• Industrial Manufacturing: Supporting steel mills, chemical plants, and data centers with mission-critical power infrastructure.

Mobile units are especially valuable for field service teams, enabling on-site recycling without transporting contaminated gas to offsite facilities.

Choosing the Right Device

When selecting an SF6 recycling and purify device, consider the following criteria:

• Purification Efficiency: Look for systems achieving <10 ppm moisture and >99.9% SF6 purity.

• Recovery Speed & Vacuum Level: Faster recovery (e.g., 40–80 kg/h) and deep vacuum (<1 mbar) minimize residual gas.

• Certifications: Ensure compliance with IEC 62271-4, EN, and local F-Gas standards.

• Connectivity: Units with USB, Bluetooth, or cloud integration simplify data export for EHS platforms.

• Durability & Service Support: Rugged design and accessible technical support ensure long-term reliability.

Leading manufacturers now offer smart devices with touchscreen interfaces, real-time diagnostics, and remote monitoring capabilities.

The Road Ahead: Complementing the Shift to SF6-Free Alternatives

While SF6-free technologies like g³ (green gas for grid) and clean air mixtures are gaining traction, the existing global fleet of SF6-filled equipment will remain in service for decades. During this transition period, responsible gas management through SF6 recycling and purify devices is the most effective way to mitigate climate impact.

Moreover, even next-generation “eco-efficient” switchgear may require hybrid gas handling during servicing—making versatile recycling units a future-proof investment.

The SF6 recycling and purify device represents a critical bridge between today’s reliable electrical infrastructure and tomorrow’s sustainable energy systems. By enabling closed-loop SF6 management, it empowers organizations to meet stringent environmental regulations, reduce operational costs, and demonstrate genuine climate leadership.

In an era where every tonne of CO₂-equivalent matters, investing in advanced SF6 recycling technology isn’t just smart engineering—it’s a commitment to planetary responsibility and long-term resilience.
