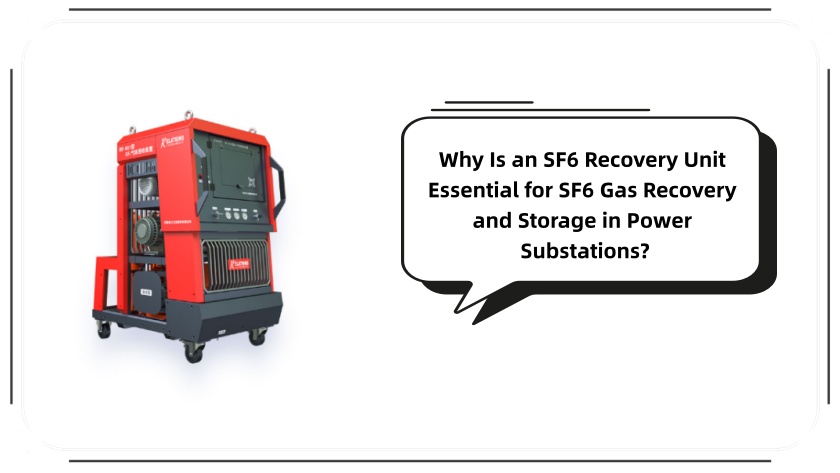

Power substations are the backbone of electrical grids, relying on high-performance insulating and arc-quenching materials to ensure safe, stable operation. Sulfur hexafluoride (SF6) gas is widely used in substations due to its excellent electrical insulation and arc-extinguishing properties. However, SF6 is a potent greenhouse gas with a global warming potential (GWP) 23,900 times that of carbon dioxide, and its uncontrolled release poses severe environmental risks. This is where an sf6 recovery unit for sf6 gas recovery and storage in power substations becomes indispensable—acting as a critical tool to minimize emissions, ensure regulatory compliance, and optimize resource efficiency.

Core Functions of an SF6 Recovery Unit for Power Substations

An sf6 recovery unit for sf6 gas recovery and storage in power substations is engineered to address the full lifecycle of SF6 gas in substation equipment, including circuit breakers, transformers, and gas-insulated switchgear (GIS). Its key functions can be broken down into three stages:

1. Efficient SF6 Gas Recovery

The primary role of the unit is to extract SF6 gas from decommissioned or maintenance-ready substation equipment. Unlike basic extraction tools, professional recovery units use vacuum pumping systems and refrigeration technology to achieve high recovery rates—typically 99% or higher. This ensures minimal residual gas remains in equipment (often below 5 mbar), preventing leaks during disassembly and reducing environmental impact.

2. Purification and Drying

Recovered SF6 gas often contains impurities like moisture, air, or particulate matter, which degrade its insulating performance. The recovery unit’s integrated filtration and drying systems remove these contaminants, restoring the gas to industry standards (e.g., IEC 60376) for reuse. This eliminates the need to purchase new SF6, cutting operational costs for substations.

3. Secure Storage

After purification, the unit stores the SF6 gas in high-pressure, corrosion-resistant cylinders or tanks. These storage components are designed to meet safety standards (such as ASME BPVC or EN 13322) to prevent leaks, even in harsh substation environments (extreme temperatures, vibration, or humidity). Some advanced units also include pressure monitoring and leak detection alarms for real-time safety oversight.

Why Power Substations Cannot Operate Without an SF6 Recovery Unit

For power utilities and substation operators, investing in an sf6 recovery unit for sf6 gas recovery and storage in power substations is not just an environmental choice—it is a strategic and regulatory necessity:

1. Compliance with Global Environmental Regulations

Nearly all countries have adopted policies to limit SF6 emissions, such as the EU’s F-Gas Regulation, the U.S. EPA’s Significant New Alternatives Policy (SNAP), and China’s National Greenhouse Gas Inventory. These regulations mandate that SF6 from substation equipment be recovered and recycled, rather than vented. A dedicated recovery unit ensures substations meet these requirements, avoiding fines and reputational damage.

2. Cost Savings Through Gas Reuse

SF6 is a high-cost gas—with prices ranging from 10 to 20 per pound. By recovering, purifying, and reusing SF6, substations can reduce reliance on new gas purchases by up to 80% annually. Over time, this offsets the initial investment in the recovery unit, making it a cost-effective long-term solution.

3. Protection of Substation Equipment and Personnel

Moisture or impurities in SF6 can cause equipment breakdowns (e.g., flashovers in GIS) or corrosion of internal components. The purification function of the recovery unit ensures reused gas maintains optimal performance, extending the lifespan of substation assets. Additionally, the unit’s sealed operation prevents personnel exposure to SF6, which can cause respiratory irritation if inhaled in high concentrations.

How to Select the Right SF6 Recovery Unit for Your Substation

Not all SF6 recovery units are suited for power substation applications. When choosing an sf6 recovery unit for sf6 gas recovery and storage in power substations, consider these key factors:

• Recovery Capacity: Match the unit’s flow rate (e.g., 50 kg/h or 100 kg/h) to the size of your substation’s SF6-containing equipment. Larger GIS installations may require high-capacity units, while smaller substations can use compact, mobile models.

• Portability: Substations often have equipment spread across large areas. Mobile units with wheels and lightweight designs (under 100 kg) allow easy movement between sites, reducing downtime during maintenance.

• Certifications: Look for units certified to international standards, such as CE (for EU markets) or UL (for North America), to ensure compliance with safety and performance requirements.

• After-Sales Support: Choose manufacturers that offer maintenance services, spare parts, and operator training. This ensures the unit remains operational and efficient over its 10–15 year lifespan.

Maintenance Tips for Long-Term Unit Performance

To maximize the effectiveness of your sf6 recovery unit for sf6 gas recovery and storage in power substations, follow these maintenance practices:

• Inspect hoses and connectors monthly for cracks or leaks, as damaged components can reduce recovery efficiency.

• Replace filters and drying agents every 500 hours of operation (or as recommended by the manufacturer) to maintain purification quality.

• Calibrate pressure gauges and temperature sensors annually to ensure accurate readings.

• Store the unit in a dry, sheltered area when not in use to prevent corrosion of metal components.

As power grids evolve to meet growing energy demands, the role of SF6 gas in substations remains critical—but so does responsible gas management. An sf6 recovery unit for sf6 gas recovery and storage in power substations is more than just equipment; it is a cornerstone of sustainable substation operations, enabling compliance, cost savings, and environmental protection. By selecting the right unit and maintaining it properly, substation operators can ensure their grids run safely, efficiently, and in line with global climate goals.
