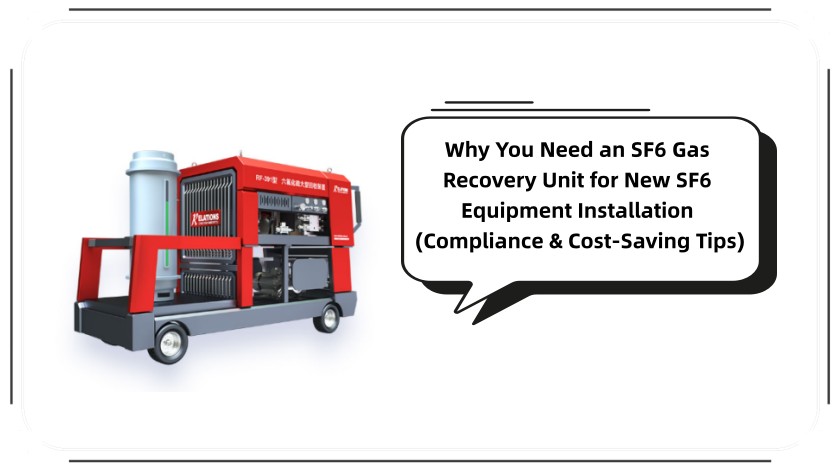

SF6 (sulfur hexafluoride) is widely used in high-voltage electrical equipment—such as GIS (gas-insulated switchgear), transformers, and circuit breakers—due to its excellent insulation and arc-quenching properties. However, when installing new SF6 equipment, improper handling of SF6 gas can lead to severe environmental harm (SF6 has a global warming potential 23,900 times that of CO₂ over 100 years) and compromised equipment performance. This is where an SF6 gas recovery unit for new SF6 equipment installation becomes indispensable. Below, we explore why this unit is critical, its core functions, how to choose the right one, and real-world applications.

1. Why an SF6 Gas Recovery Unit Is Non-Negotiable for New SF6 Equipment Installation

1.1 Meet Global Environmental Regulations

Nearly all countries and regions (including the EU, North America, and Asia) have strict rules on SF6 emissions, such as the EU’s F-Gas Regulation and the U.S. EPA’s greenhouse gas standards. During new equipment installation, SF6 gas may leak during transfer, evacuation, or testing. An SF6 gas recovery unit captures up to 99.5% of the gas, preventing emissions and ensuring compliance with local and international laws—avoiding fines and reputational damage for utilities and manufacturers.

1.2 Protect Equipment Performance

New SF6 equipment requires ultra-pure SF6 gas (purity ≥99.9%) to maintain insulation and arc-quenching capabilities. If air, moisture, or impurities enter the equipment during installation, it can cause partial discharges, equipment breakdowns, or shortened lifespan. A high-quality recovery unit not only recovers SF6 but also purifies it, removing moisture (to ≤5 ppm) and oil residues, ensuring the gas meets IEC 60376 standards for new equipment use.

1.3 Reduce Operational Costs

SF6 is a costly gas (up to $100 per kg). Without a recovery unit, unused or leaked SF6 must be replaced, increasing material costs. By recycling and reusing recovered SF6, facilities can cut gas procurement expenses by 30–50% over time. Additionally, the unit eliminates the need for expensive waste gas disposal, further lowering total installation costs.

2. Core Functions of an SF6 Gas Recovery Unit for New Installation

To support smooth new SF6 equipment installation, the unit must have these key features:

• High-Efficiency Recovery: Capable of recovering SF6 from cylinders or equipment down to a residual pressure of ≤5 mbar, ensuring minimal gas loss.

• Deep Purification: Equipped with multi-stage filters (molecular sieves, activated carbon) to remove moisture, impurities, and decomposition byproducts—critical for new equipment that requires pristine gas.

• Vacuum Pump Integration: Before filling SF6, the unit evacuates the new equipment’s cavity to a high vacuum (≤1 mbar), eliminating air and moisture that could contaminate the gas.

• Portability: Most new equipment installations occur on-site (e.g., power substations). Compact, wheeled units with lightweight designs (20–50 kg) enable easy movement across job sites.

• Safety Features: Overpressure protection, temperature monitoring, and gas leakage alarms prevent accidents during operation, safeguarding workers and the environment.

3. How to Choose the Right SF6 Gas Recovery Unit for New Installation

Not all recovery units are suitable for new SF6 equipment. Consider these factors:

3.1 Match Gas Handling Capacity

Calculate the SF6 volume of your new equipment (e.g., a 220kV GIS typically holds 50–200 kg of SF6). Choose a unit with a recovery rate of 1–5 kg/h (for small equipment) or 10–20 kg/h (for large GIS) to avoid delays in installation.

3.2 Prioritize Portability and Durability

On-site installations often involve rough terrain. Look for units with rugged casings, heavy-duty wheels, and weather-resistant components (IP54 rating or higher) to withstand outdoor conditions.

3.3 Verify Compliance Certifications

Ensure the unit meets international standards, such as CE (EU), UL (U.S.), or ISO 14001 (environmental management). Certifications guarantee the unit’s performance and compliance with local regulations.

3.4 Check After-Sales Support

Choose suppliers that offer on-site training (for installation teams) and maintenance services. Quick access to spare parts (e.g., filters, hoses) minimizes downtime if the unit needs repairs during critical installation phases.

4. Real-World Application: SF6 Recovery Unit in GIS Installation

A European utility company recently installed 10 new 400kV GIS units at a substation. Initially, they planned to use manual gas transfer, but this risked emissions and purity issues. Instead, they deployed an SF6 gas recovery unit with a 15 kg/h recovery rate and integrated vacuum pump.

The unit first evacuated the GIS cavities to 0.5 mbar, then transferred and purified SF6 from cylinders to the equipment. The result: zero emissions (verified by a gas detector), SF6 purity of 99.99%, and installation time reduced by 20% (compared to manual methods). The utility also saved $12,000 in SF6 procurement costs by reusing excess gas from the installation.

An SF6 gas recovery unit is not just an optional tool for new SF6 equipment installation—it is a critical investment in environmental compliance, equipment reliability, and cost savings. By choosing a unit that matches your equipment’s needs, prioritizes efficiency and safety, and aligns with global standards, you can streamline installation processes and reduce your carbon footprint. As the world tightens SF6 regulations, integrating a high-quality recovery unit into new equipment installation workflows will become even more essential for utilities and electrical manufacturers.
